Technical specification
- Maximum power
- 175 W
- RF frequency
- 5 MHz
- Energy levels
- 1-60 adjustable
- Pulse duration
- 10-900 ms
- Needle depth
- 0.2-7.0mm adjustable
- Working modes
- Manual / auto
- Negative-pressure non-insulated heads
- NV64 / NV49 / NV36 / NV9
- Common-pole insulated heads
- IC40 / IC24 / IC12
- Micro RF needle heads
- IS5 / IS25 / IS49
- RF thermal therapy heads
- HR1 / HR2 / HR3
- Handpieces
- Fractional RF and microneedle RF
- Warranty
- 12 months machine

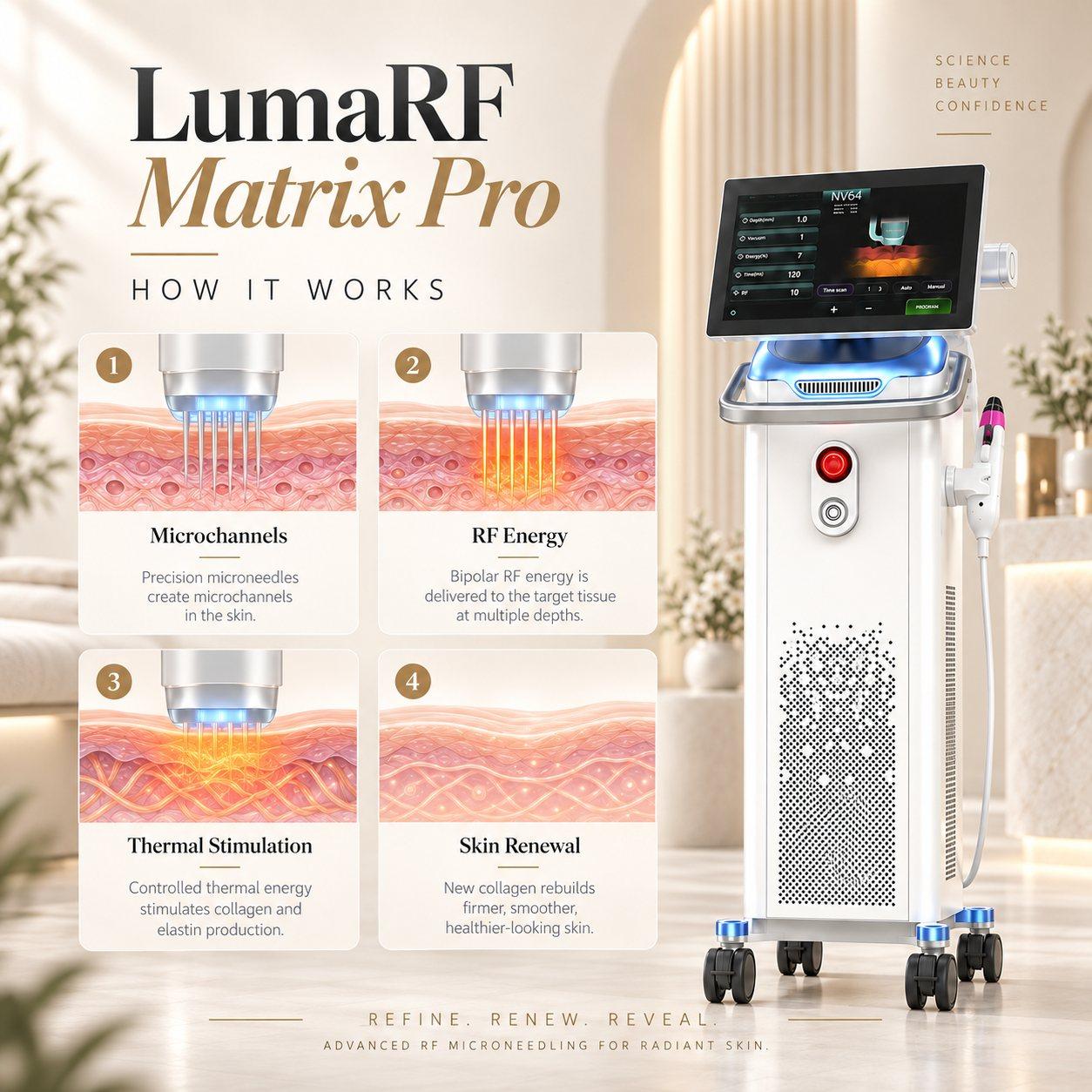

Insulated needles deliver RF only from the exposed tip, so the energy lands at the set depth and the shaft above it is spared; non-insulated needles heat the full tract. Having both, plus depth adjustable from 0.2 to 7.0mm and pulse duration from 10 to 900ms, means one machine covers thin periorbital skin and thick submental tissue without changing platform. The negative-pressure heads lift tissue into the needle array, and the HR thermal heads run surface RF with no needling at all.
Every order includes online operator training covering setup, treatment parameters and daily maintenance, run live with your team rather than sent as a video link. Printable parameter cards come with the machine for your intake binder. New staff can be added to training at any time, at no cost, for as long as you own the machine.
Fully insured air freight from our production line to your practice door, customs and duties prepaid — typically 12–15 days from dispatch. Consumables and cartridges ship same-day from our US warehouse. Twelve-month warranty on the machine with replacement parts supplied free, covering manufacturing and component failure.
Treatments
- Fractional RF microneedling for texture and scarring
- Subdermal remodelling at depth with insulated heads
- Non-needling RF thermal therapy with the HR heads
