Technical specification
- Wavelengths
- 1064nm / 532nm
- Pulse width
- 500 ps (1064nm) / 350 ps (532nm)
- Single pulse energy
- 500 mJ (1064nm) / 350 mJ (532nm)
- Energy stability
- 2% (1064nm) / 3% (532nm)
- Repetition rate
- 1-10 Hz
- Beam profile
- Top-hat
- Beam diameter
- 10mm
- Divergence
- 1 mrad
- Zoom handpiece
- 2 / 3.4 / 5 / 6.7 / 8 / 9 / 10mm spots

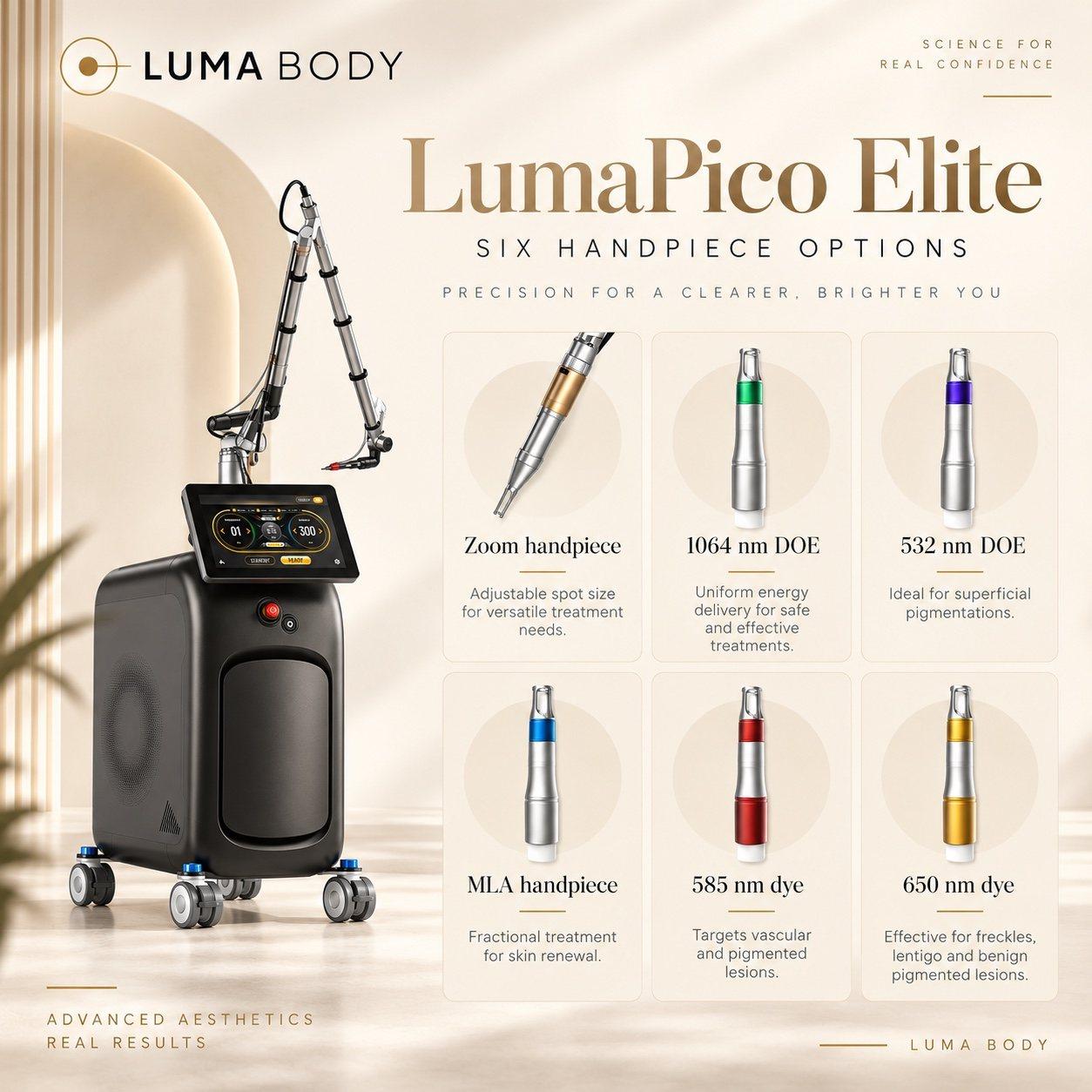

- DOE handpieces
- 1064nm and 532nm, 7x7mm, 7x7 dots
- Dye handpieces
- 585nm and 650nm, 2mm
- Warranty
- 12 months machine and handpiece

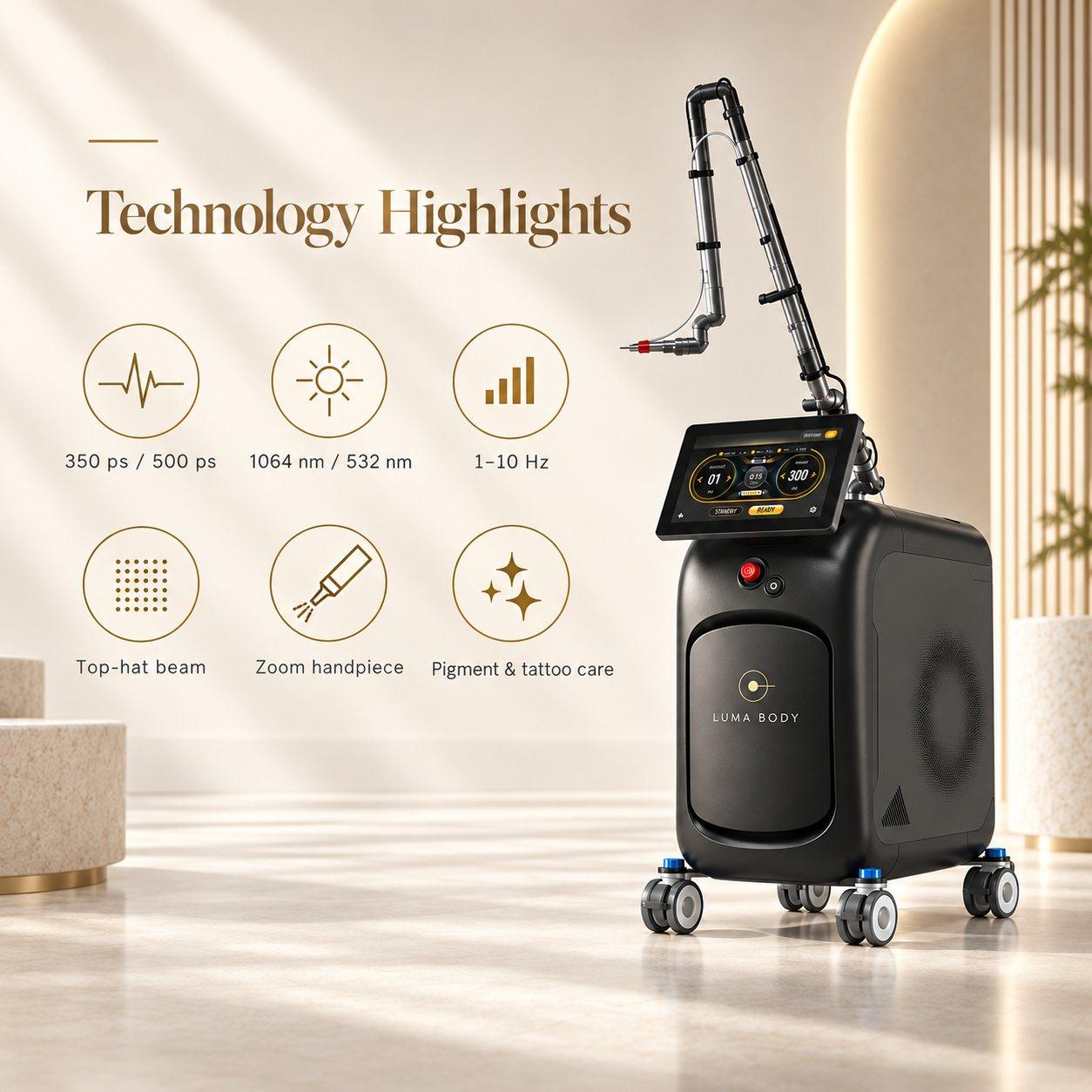

A picosecond pulse deposits its energy faster than the tissue can conduct heat away, so pigment is fractured photomechanically rather than heated. The top-hat beam profile means the energy is flat across the spot instead of peaked in the centre, which is what lets an operator raise fluence without a hot core. Two wavelengths, a seven-position zoom handpiece and the diffractive and dye handpieces cover tattoo work, benign pigmented lesions and toning from one console.
Every order includes online operator training covering setup, treatment parameters and daily maintenance, run live with your team rather than sent as a video link. Printable parameter cards come with the machine for your intake binder. New staff can be added to training at any time, at no cost, for as long as you own the machine.
Fully insured air freight from our production line to your practice door, customs and duties prepaid — typically 12–15 days from dispatch. Consumables and cartridges ship same-day from our US warehouse. Twelve-month warranty on the machine with replacement parts supplied free, covering manufacturing and component failure.
Treatments
- Tattoo removal across multi-colour inks
- Benign pigmented lesions and sun damage
- Skin toning and texture with the DOE and MLA handpieces
