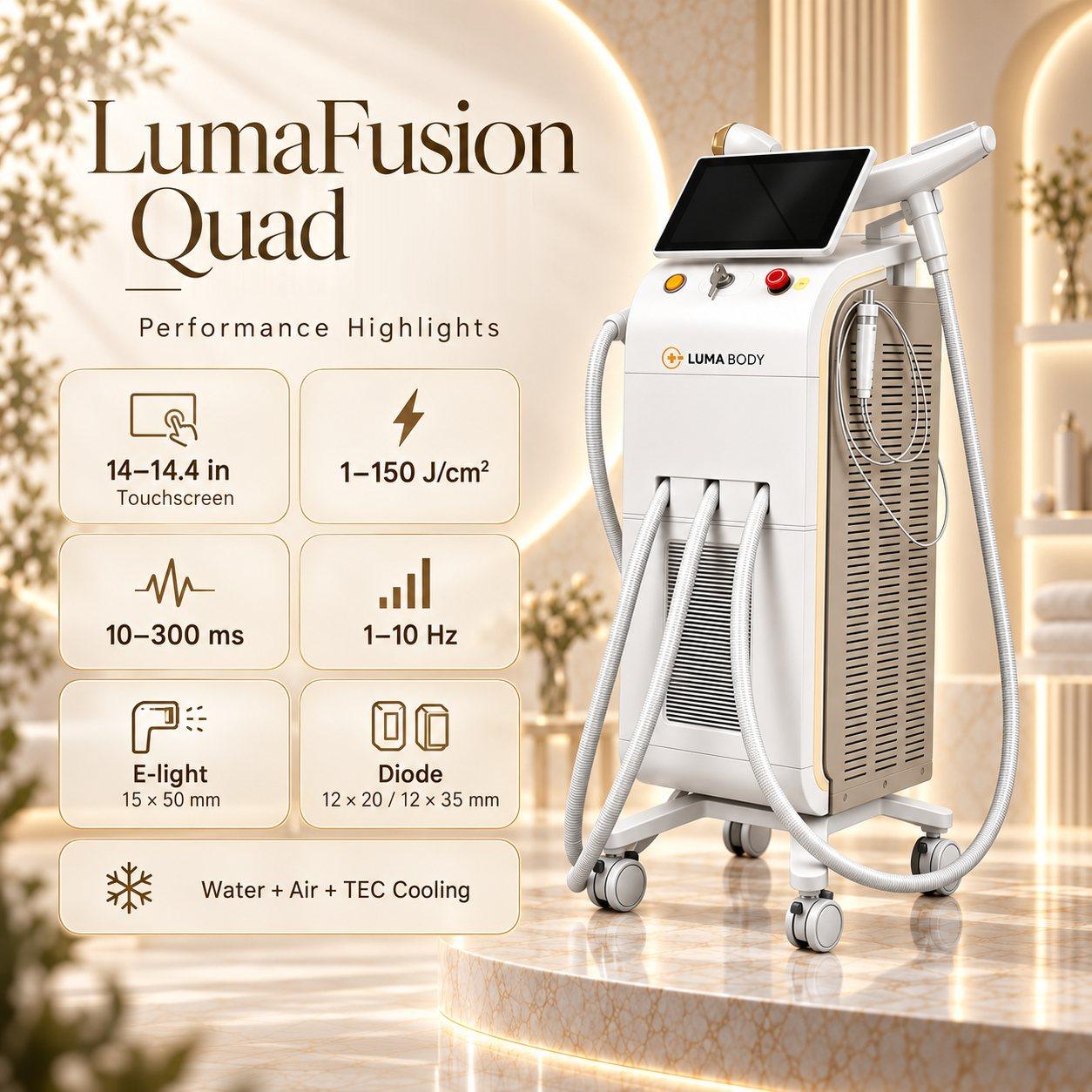

Technical specification
- Platforms
- Diode laser + IPL + Nd:YAG + RF
- Diode wavelengths
- 755 + 808 + 1064nm, or 755 + 808 + 940 + 1064nm
- Diode fluence
- 1-150 J/cm2
- Diode pulse duration
- 1-300 ms
- Diode repetition rate
- 1-10 Hz
- Diode spot size
- 12x20mm or 12x35mm
- IPL filters
- 420 / 510 / 560 / 585 / 640 / 690 / 755nm
- IPL fluence
- 10-50 J/cm2
- IPL power
- 800 W
- IPL spot size
- 15x50mm
- Nd
- YAG wavelengths: 532 / 755 / 1064 / 1320nm
- Nd
- YAG tips: 5 - fixed 1064nm and 532nm, adjustable 1064nm, 532nm and 1320nm
- Nd
- YAG pulse energy: Up to 1000 mJ
- Nd
- YAG repetition rate: 1-10 Hz
- Nd
- YAG spot: 1-9mm adjustable
- RF energy
- 10-100 J/cm2
- RF frequency
- 0.5 MHz
- Cooling
- Water + TEC + sapphire contact
- Console

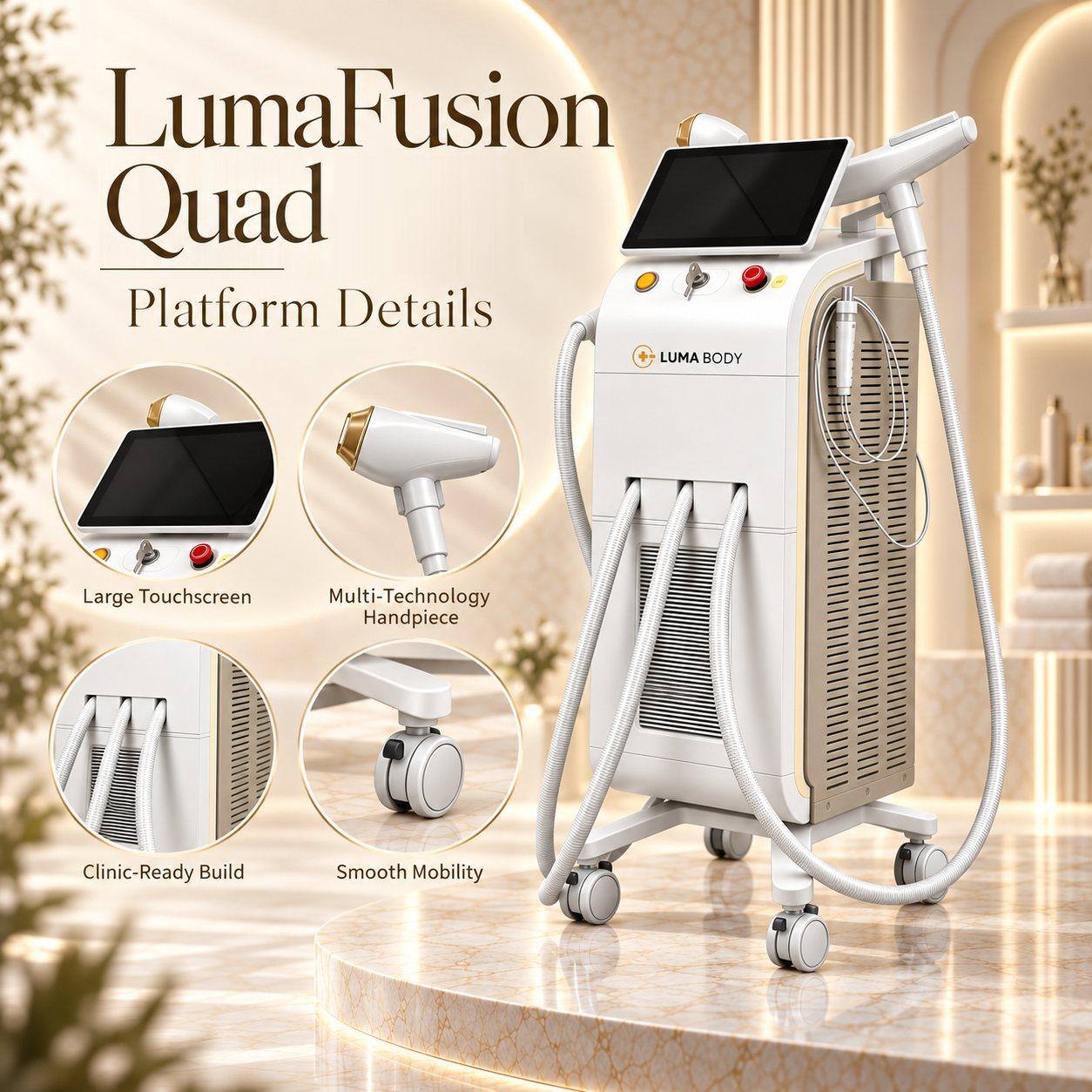

- 14.4" touchscreen
- Dimensions
- 1170 x 430 x 490mm
- Voltage
- 110V or 220V
- Warranty
- 12 months machine

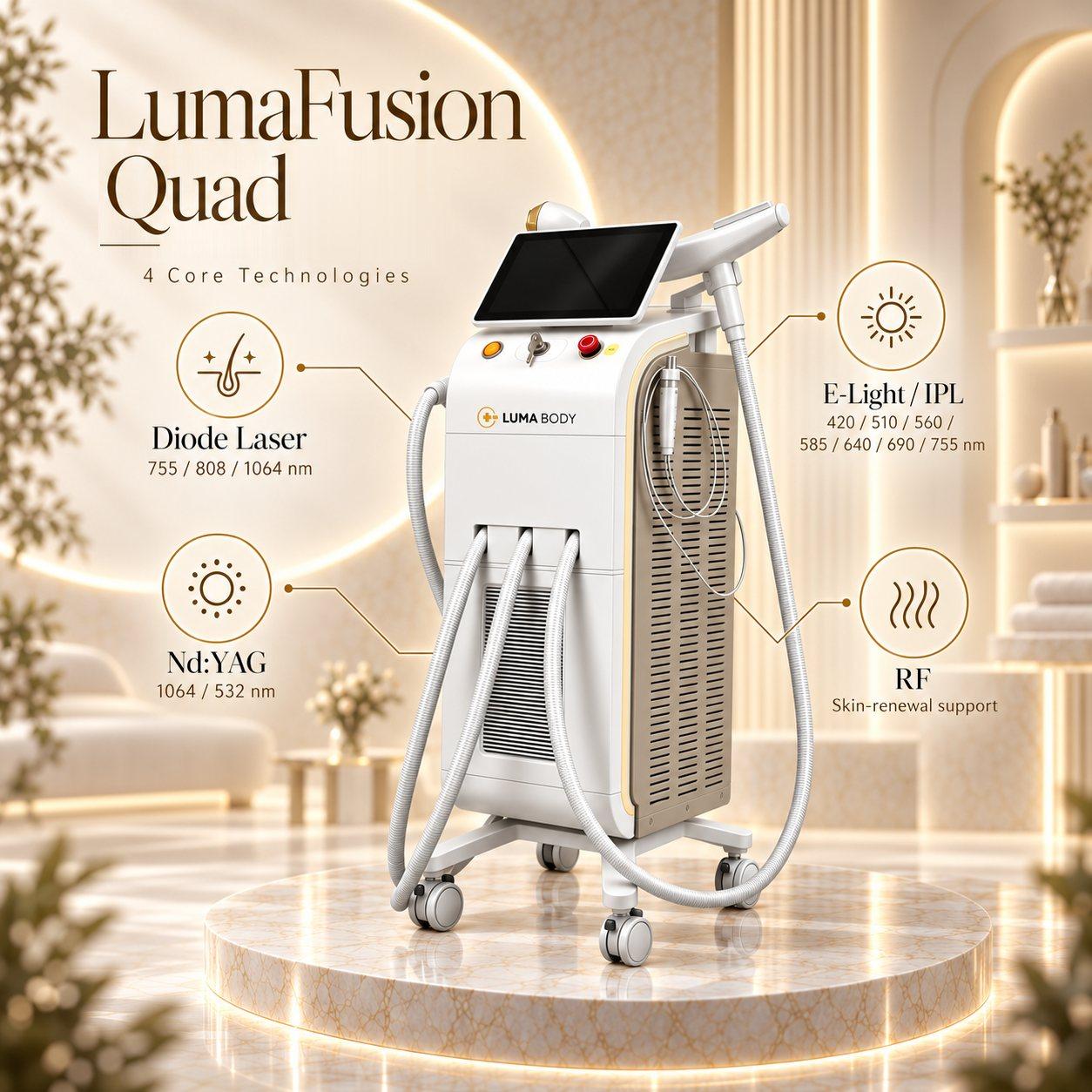

One console replaces the four machines a general aesthetic clinic buys first. The diode handpiece ships with three or four wavelengths for hair removal on every skin type. The IPL handpiece takes seven interchangeable filters from 420 to 755nm, so one light source covers acne, vascular redness, pigment and photo-rejuvenation. The Nd:YAG handpiece carries five tips for 1064 and 532nm tattoo and pigment work plus 1320nm carbon peel, and RF adds skin tightening. Water, TEC and sapphire cooling run together, so the diode can work a full list without resting.
Every order includes operator training, delivered online by our technical team with your questions answered directly. Printable parameter cards come with the machine for your intake binder. One-to-one clinical training can be arranged as well.
Fully insured delivery to your practice door, typically 12–15 days from dispatch. In the US and Canada the price you see is final, with nothing to pay on arrival; elsewhere we quote delivery before you order. Twelve months on the machine with replacement parts supplied free for manufacturing and component failure, and three months on handpieces.

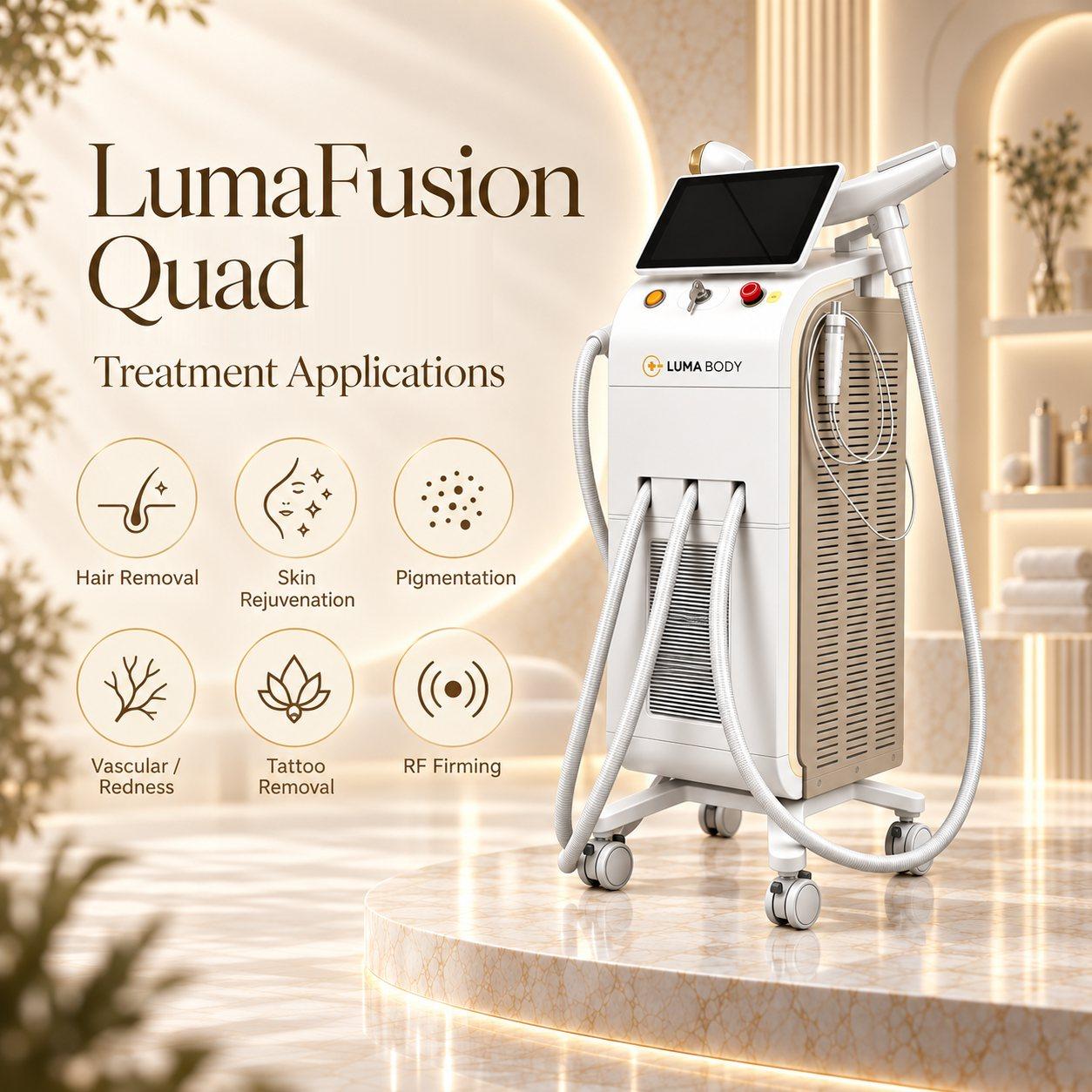

Treatments
- Permanent hair reduction with 3 or 4 diode wavelengths
- IPL skin rejuvenation, pigment, redness and acne protocols
- Nd:YAG tattoo removal and pigment treatment, 1320nm carbon peel
- RF skin tightening
Order customization
Also considered
4-in-1 Diode Laser, HIFU & RF Microneedling Workstation
- Diode laser + RF microneedling + 980nm + HIFU
- 755 + 808 + 1064nm
- 1-150 J/cm2
2-in-1 Diode Laser & Pico Laser Machine
- Diode laser + Pico Nd:YAG
- 755 + 808 + 940 + 1064nm
- 1-150 J/cm2
4-in-1 Diode Laser, IPL, Pico Laser & RF Microneedling Workstation
- Diode laser + IPL + Pico Nd:YAG + RF microneedling
- 755 + 808 + 1064nm, or 755 + 808 + 940 + 1064nm
- 1-150 J/cm2
Deciding between two?LumaFusion Quad vs LumaFusion X4LumaFusion Quad vs LumaDuo PicoLumaFusion Quad vs LumaPico Fusion
LumaFusion Quad — what buyers ask
- How much does a 4 in 1 ipl diode laser machine cost?
- The LumaFusion Quad is $13,900 delivered to your practice in the US or Canada. That is the final price: delivery, operator training and a 12-month machine warranty are included, and there is nothing further to pay on arrival. Outside the US and Canada we quote delivery before you order.
- What is a 4-in-1 IPL diode laser machine?
- One console with four handpieces: a diode laser for hair removal, an IPL handpiece with interchangeable filters for skin rejuvenation, pigment and redness, an Nd:YAG for tattoo and pigment removal, and RF for skin tightening. The LumaFusion Quad shares one power supply and one water, TEC and sapphire cooling system between them.
- How many IPL filters does the LumaFusion Quad have?
- Seven: 420, 510, 560, 585, 640, 690 and 755nm, used with a 15x50mm window at 10-50 J/cm2 and 800W.
- Should I choose three or four diode wavelengths?
- Three wavelengths (755, 808 and 1064nm) cover fine, typical and deep hair across skin types. The four-wavelength handpiece adds 940nm between 808 and 1064nm. Both are offered at the same price.
- What is the difference between the LumaFusion Quad and the LumaPico Fusion?
- The same four-platform console, with one handpiece different: the LumaFusion Quad has surface RF for tightening, the LumaPico Fusion has RF microneedling to 4.5mm for texture and scarring, and a stronger 3000 mJ pico handpiece.
- Are there any extra costs on delivery?
- No. In the US and Canada the price on the page is the final price. Delivery and all import costs are already paid, and the machine arrives at your practice and is uncrated on site. There is nothing to pay when it arrives.
- How long does delivery take?
- Typically 12 to 15 days from dispatch by dedicated air freight, plus one to three days to prepare your order once payment clears.
- What warranty comes with the LumaFusion Quad?
- Twelve months on the machine from delivery, with replacement parts supplied free for manufacturing and component failure. Handpieces and applicators carry three months, as they are the wearing parts. Damage caused in use is not covered.
- Is training included?
- Yes. Operator training is included with every machine and is delivered online by our technical team, with your questions answered directly. One-to-one clinical training can be arranged as well.
- How do I pay for it?
- By wire transfer against a proforma invoice. You place the order on the site and we send the invoice with payment instructions. You can pay in full, or pay 50% before we prepare your order and the other 50% once it is ready to ship. The price is the same either way.
